数据可视化matplotlib

import matplotlib.pyplot as plt
import numpy as np
import numpy.random as randn
import pandas as pd
from pandas import Series,DataFrame
from pylab import mpl
mpl.rcParams['axes.unicode_minus'] = False # 我自己配置的问题
plt.rc('figure', figsize=(10, 6)) # 设置图像大小

%matplotlib inline

1. figure对象

Matplotlib的图像均位于figure对象中。

  • 创建figure: plt.figure()

fig = plt.figure()

2. subplot子图

  • add_subplot:向figure对象中添加子图。

  • add_subplot(a, b, c):a,b 表示讲fig分割成axb的区域,c 表示当前选中要操作的区域(c从1开始)。
    add_subplot返回的是AxesSubplot对象,plot 绘图的区域是最后一次指定subplot的位置

ax1 = fig.add_subplot(2,2,1)
ax2 = fig.add_subplot(2,2,2)
ax3 = fig.add_subplot(2,2,3)
ax4 = fig.add_subplot(2,2,4)

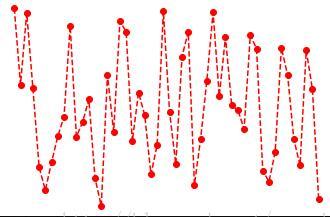

random_arr = randn.rand(50)
# 默认是在最后一次使用subplot的位置上作图
plt.plot(random_arr,'ro--') # r:表示颜色为红色,o:表示数据用o标记 ,--:表示虚线
# 等价于:
# plt.plot(random_arr,linestyle='--',color='r',marker='o')
plt.show()

数据可视化matplotlib

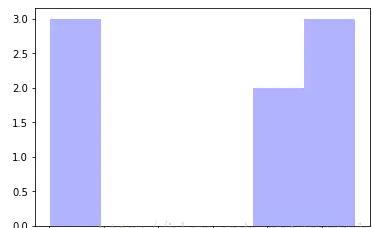

# hist:直方图:统计分布情况
plt.hist(np.random.rand(8), bins=6, color='b', alpha=0.3)
# bins:数据箱子个数
(array([ 3.,  0.,  0.,  0.,  2.,  3.]),
 array([ 0.10261627,  0.19557319,  0.28853011,  0.38148703,  0.47444396,
         0.56740088,  0.6603578 ]),
 <a list of 6 Patch objects>)

数据可视化matplotlib

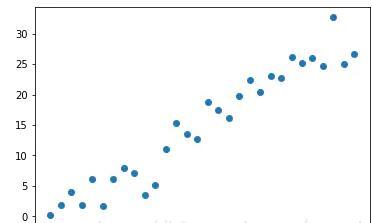

# 散点图
plt.scatter(np.arange(30), np.arange(30) + 3 * randn.randn(30))

数据可视化matplotlib

  • subplots :生成子图/子图数组

# 柱状图
fig, ax = plt.subplots()
x = np.arange(5)
y1, y2 = np.random.randint(1, 25, size=(2, 5))
width = 0.25
ax.bar(x, y1, width, color='r')
# 画柱子ax.bar(x+width, y2, width, color='g')
# 画柱子ax.set_xticks(x+width)
ax.set_xticklabels(['a', 'b', 'c', 'd', 'e']) # 下标注明

数据可视化matplotlib

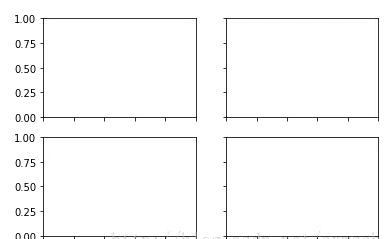

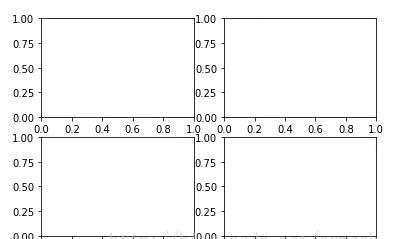

fig, axes = plt.subplots(2, 2, sharex=True, sharey=True) # 共享轴坐标

数据可视化matplotlib

  • subplots_adjust:调整subplots的间距

plt.subplots_adjust(left=0.5,top=0.5)
fig, axes = plt.subplots(2, 2)

数据可视化matplotlib

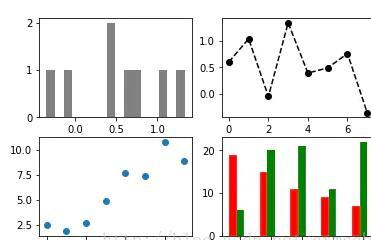

random_arr = randn.randn(8)
fig, axes = plt.subplots(2, 2)
axes[0, 0].hist(random_arr, bins=16, color='k', alpha=0.5)
axes[0, 1].plot(random_arr,'ko--')
x = np.arange(8)
y = x + 5 * np.random.rand(8)
axes[1,0].scatter(x, y)
x = np.arange(5)
y1, y2 = np.random.randint(1, 25, size=(2, 5))
width = 0.25axes[1,1].bar(x, y1, width, color='r') # 画柱子
axes[1,1].bar(x+width, y2, width, color='g') # 画柱子
axes[1,1].set_xticks(x+width)
axes[1,1].set_xticklabels(['a', 'b', 'c', 'd', 'e']) # 下标注明

数据可视化matplotlib

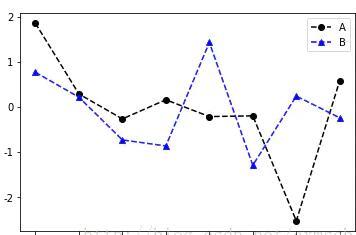

  • 重叠绘制

  • legend:显示图例

random_arr1 = randn.randn(8)
random_arr2 = randn.randn(8)
fig, ax = plt.subplots()
ax.plot(random_arr1,'ko--',label='A')
ax.plot(random_arr2,'b^--',label='B')
plt.legend(loc='best') # 自动选择放置图例的最佳位置

数据可视化matplotlib

  • 设置刻度范围:set_xlim、set_ylim

  • 设置显示的刻度:set_xticks、set_yticks

  • 刻度标签:set_xticklabels、set_yticklabels

  • 坐标轴标签:set_xlabel、set_ylabe

  • l图像标题:set_title

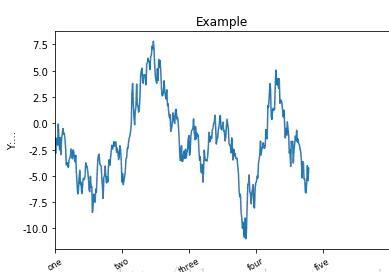

fig, ax = plt.subplots(1)
ax.plot(np.random.randn(380).cumsum())

# 设置刻度范围a
x.set_xlim([0, 500])

# 设置显示的刻度(记号)
ax.set_xticks(range(0,500,100))

# 设置刻度标签
ax.set_xticklabels(['one', 'two', 'three', 'four', 'five'],
rotation=30, fontsize='small')

# 设置坐标轴标签ax.set_xlabel('X:...')
ax.set_ylabel('Y:...')

# 设置标题
ax.set_title('Example')

数据可视化matplotlib

3. Plotting functions in pandas

plt.close('all')

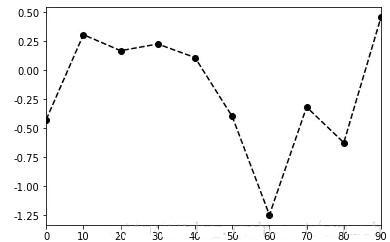

s = Series(np.random.randn(10).cumsum(), index=np.arange(0, 100, 10))
s
fig,ax = plt.subplots(1)
s.plot(ax=ax,style='ko--')

数据可视化matplotlib

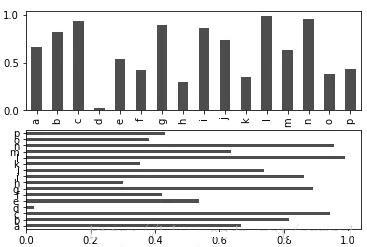

fig, axes = plt.subplots(2, 1)
data = Series(np.random.rand(16), index=list('abcdefghijklmnop'))
data.plot(kind='bar', ax=axes[0], color='k', alpha=0.7)
data.plot(kind='barh', ax=axes[1], color='k', alpha=0.7)

数据可视化matplotlib

df = DataFrame(np.random.randn(10, 4).cumsum(0),
               columns=['A', 'B', 'C', 'D'],
               index=np.arange(0, 100, 10))
df
A B C D
0 -0.523822 1.061179 -0.882215 -0.267718
10 -0.178175 -0.367573 -1.465189 -1.095390
20 0.276166 0.816511 -0.344557 1.297281
30 0.529400 0.159374 -2.765168 1.784692
40 -1.129003 -1.665272 -2.746512 3.140976
50 0.265113 -1.821224 -5.140850 2.377449
60 -2.699879 -3.895255 -5.011561 1.715174
70 -2.384257 -3.480928 -4.519131 2.805369
80 -2.525243 -3.031608 -4.840125 1.106624
90 -2.020589 -3.519473 -4.823292 0.522323

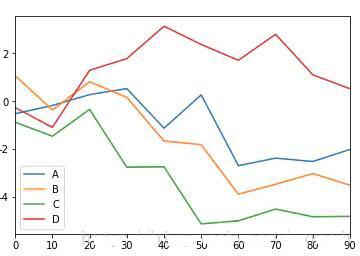

df.plot() # 列索引为图例,行索引为横坐标,值为纵坐标

数据可视化matplotlib

df = DataFrame(np.random.randint(0,2,(10, 2)),
               columns=['A', 'B'],
               index=np.arange(0, 10, 1))
df
A B
0 0 1
1 0 1
2 1 0
3 0 1
4 1 0
5 1 0
6 1 1
7 0 0
8 1 0
9 1 0

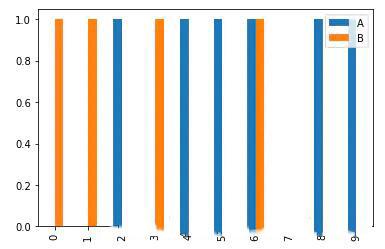

df.plot(kind='bar')

数据可视化matplotlib

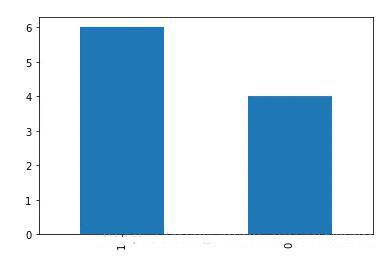

df.A.value_counts().plot(kind='bar')

数据可视化matplotlib

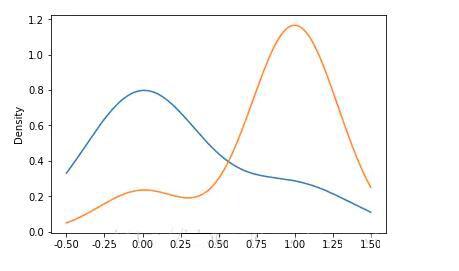

df.A[df.B == 1].plot(kind='kde')
df.A[df.B == 0].plot(kind='kde')    # 密度图

数据可视化matplotlib

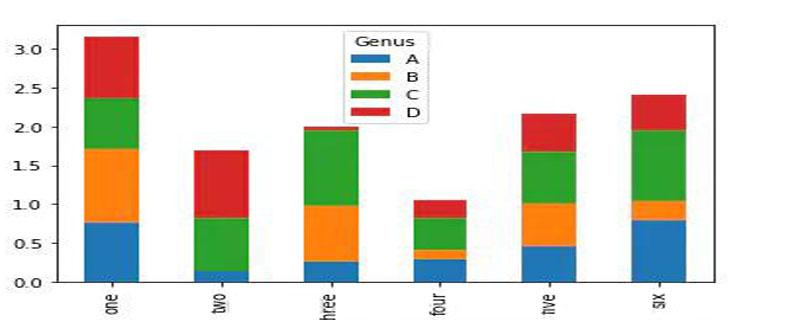

df = DataFrame(np.random.rand(6, 4),
               index=['one', 'two', 'three', 'four', 'five', 'six'],
               columns=pd.Index(['A', 'B', 'C', 'D'], name='Genus'))
df
Genus A B C D
one 0.760750 0.951159 0.643181 0.792940
two 0.137294 0.005417 0.685668 0.858801
three 0.257455 0.721973 0.968951 0.043061
four 0.298100 0.121293 0.400658 0.236369
five 0.463919 0.537055 0.675918 0.487098
six 0.798676 0.239188 0.915583 0.456184

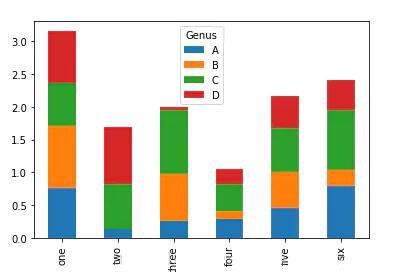

df.plot(kind='bar',stacked='True') #行索引:横坐标

数据可视化matplotlib

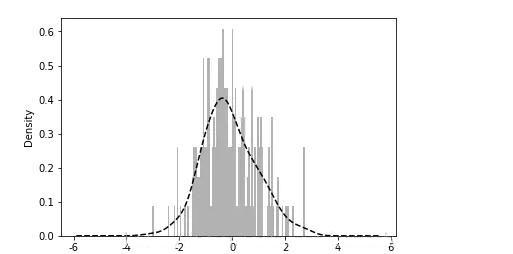

values = Series(np.random.normal(0, 1, size=200))
values.hist(bins=100, alpha=0.3, color='k', normed=True)
values.plot(kind='kde', style='k--')

数据可视化matplotlib

df = DataFrame(np.random.randn(10,2),
               columns=['A', 'B'],
               index=np.arange(0, 10, 1))
df

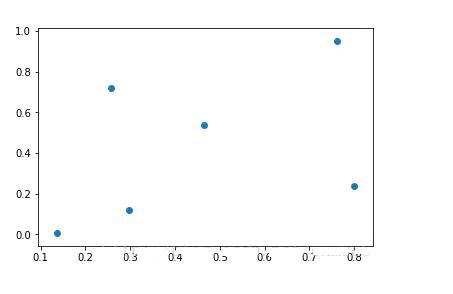

plt.scatter(df.A, df.B)

数据可视化matplotlib
